Sky Analyzer for ASTERIX User Manual

1. Introduction

1.1 Overview

Sky Analyzer for ASTERIX is a powerful tool to open, decode, analyze and inspect surveillance data in Eurocontrol All Purpose STructured Eurocontrol SuRveillance Information EXchange (ASTERIX) format.

Sky Analyzer for ASTERIX allows you not only read ASTERIX data, but also make further analyzer on it.

It can also work with other tools, and give you a full capability from data recording, inspection, analyzing to modification, generation and simulation.

1.2 Features

1.2.1 Categories

The ASTERIX format defines different category for different type of surveillance.

Sky Analyzer for ASTERIX supports all commonly used ASTERIX categories, and different versions of some category. It will continue expand its capability to support more categories in future.

The supported categories and versions are:

Note: Most categories are backward compatible, which means if the version of your data is lower or equal to the version listed in the table above, it can be correctly decoded. CAT021 is one exception of this backward compatibility.

1.2.2 User Application Profile

The ASTERIX standard defines all possible data items, but the existence and order of these data items are defined by User Application Profile (UAP).

Sky Analyzer for ASTERIX supports all standard UAP, and some widely used property UAPs defined by major ATC vendors.

The supported UAPs are:

• Standard UAP
• Proprietary UAP of Raytheon radar
• Proprietary UAP of Thales ADS-B

Further more, Sky Analyzer for ASTERIX is able to analyze the data and automatically select a proper UAP to decode it. Normally user don't need to worry about UAP selection.

1.2.3 File Formats

Sky Analyzer for ASTERIX supports a various of different file formats, including both open and property format. It can read and analyze data from all supported file format, there is also one File Convertor tool to make conversion between these formats.

The supported file formats are:

• XML Recording File (.rex)
• Compressed XML Recording File (.rez .rex.xz)
• Binary Recording File Version 2 (.reb)
• Recording Index File (.rei)
• tcpdump/Wireshark Capture File (.pcap)
• Raw ASTERIX Data Stream (.ast .bin)
• Indra ATM System Recording File
• Thales ATM System Recording File
• SiATM ATM System Log File
• AirNet ATM System Log File
• Indra Radar Recording File

Note: Some formats listed above may not appear in your application, it depends on your license type.

Note: Some more proprietary formats are not listed here and supported only in customized/OEM version. Please contact us if you are interested in supporting proprietary file format.

1.2.4 Comm-B Data Selector

Sky Analyzer for ASTERIX is capable to decode Comm-B Data Selector (BDS) data embeded in some data items. It is useful as some important data (e.g. FMS selected altitude) is not defined by ASTERIX and the only way to retrieve it is from BDS.

The supported BDS are:

• BDS 1,0 - Data Link Capability Report
• BDS 2,0 - Aircraft Identification
• BDS 3,0 - TCAS/ACAS Active Resolution Advisory
• BDS 4,0 - Selected Vertical Intention
• BDS 5,0 - Track and Turn Report
• BDS 6,0 - Heading and Speed Report

1.2.5 Data Inspection

Sky Analyzer for ASTERIX has friendly HMI and allows you read, decode and inspect data.

It supports different types of data sources, including

• Recording file
• LAN
• Synchronous serial line

And it supports different types of data frame, including

• Raw data without frame
• HDLC
• UDP
• Proprietary frame type

And there are two views to visually display data

• Message view, to display data frame/block/record/item in a tree structure
• Target list view, to display data record in a table structure

Also there is a powerful scriptable function allows you find and show only data you are interested.

1.2.6 Data Analyze

Apart from viewing the data, Sky Analyzer for ASTERIX has a set of tools to make further analyze on surveillance data.

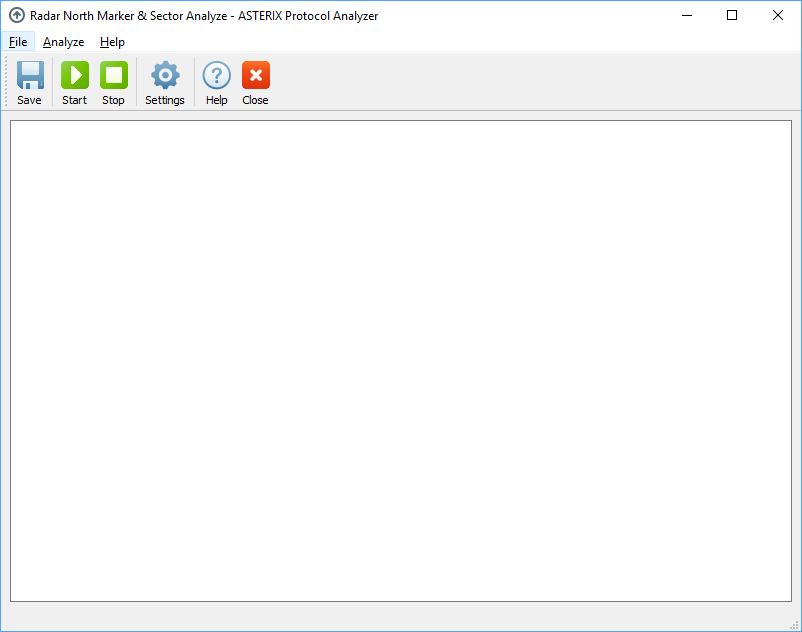

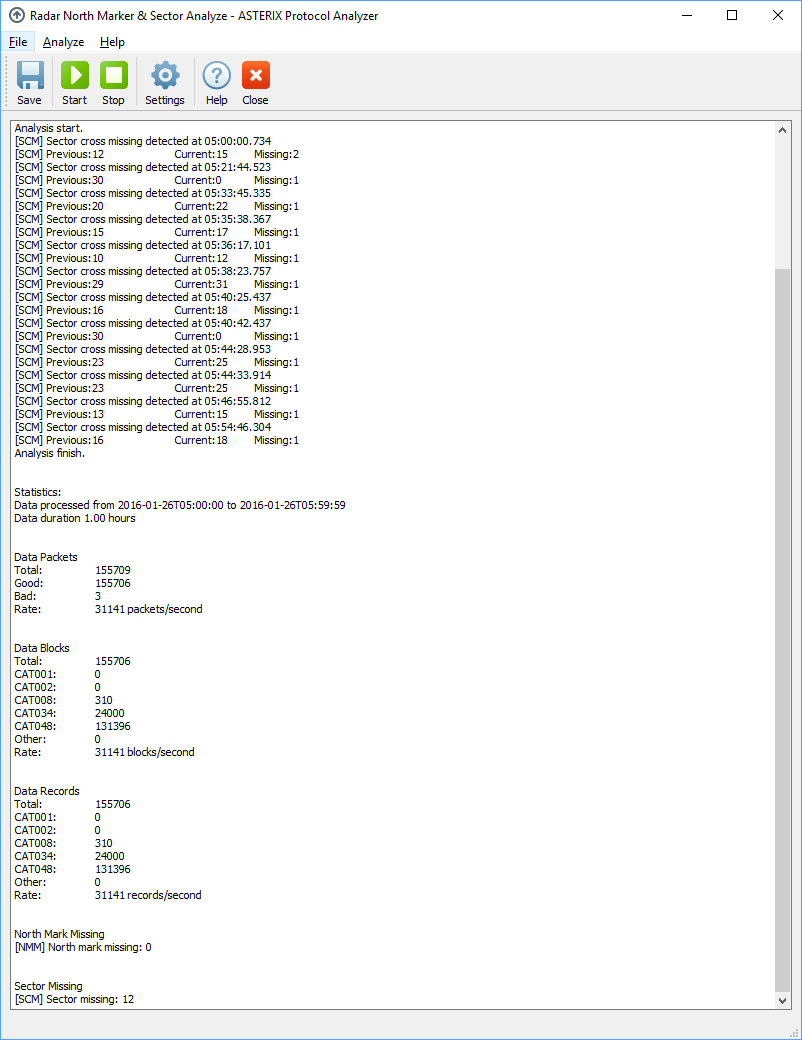

• Radar north marker & sector missing Analyze tool, allows you to analyze the continuity of radar rotation reports;
• Radar coverage analyze tool, allows you to generate radar coverage map by using real history data;
• ADS-B receiver coverage analyze tool, allows you to generate ADS-B receiver coverage map for a single ground station by using real history data;
• ADS-B network coverage analyze tool, allows you to generate ADS-B coverage map for a ADS-B ground station network by using real history data;
• Message transmission delay analyze tool, allows you to detect transmission delay problem.

1.2.7 Data Export

Data and analyze result can be exported into different formats, including

• C/C++ struct
• Microsoft Excel CSV

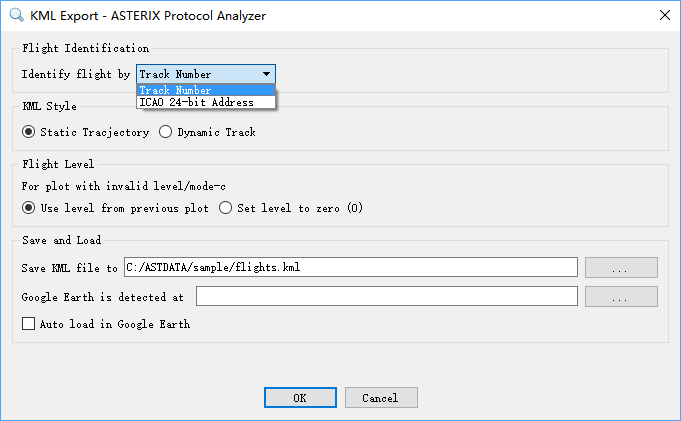

• Google Earth KML
• HTML
• Adobe PDF

1.2.8 Support Tools

There is also a set of tools to expand the capability of Sky Analyzer for ASTERIX, including

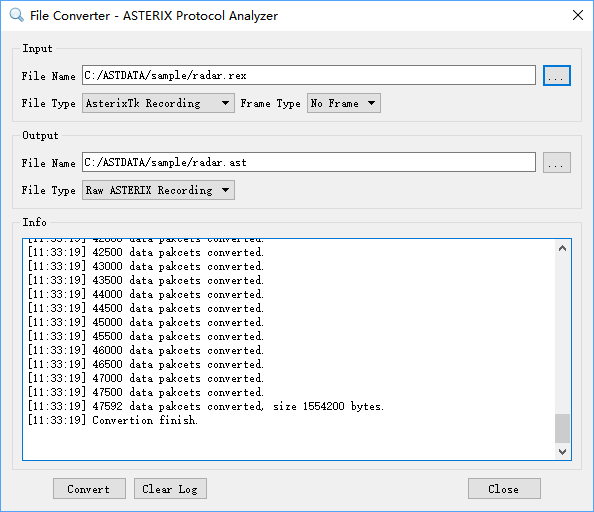

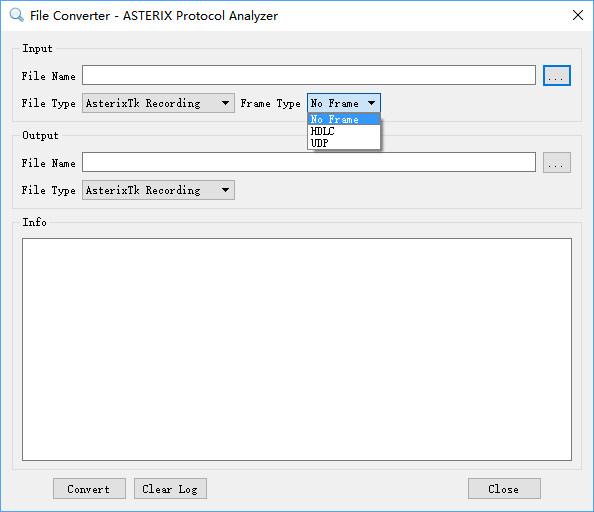

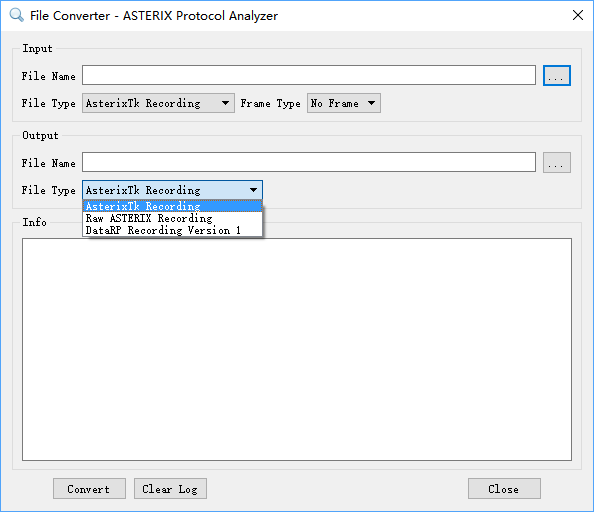

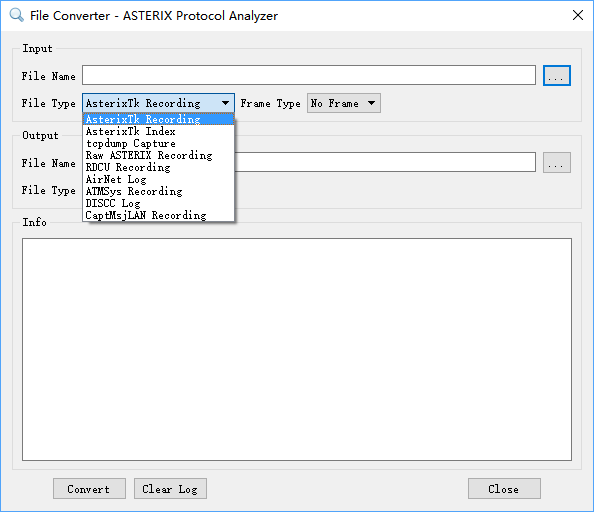

• File Convertor, to make conversion between different data file formats;
• Sky Recorder, a generic purpose tool to record and replay data;
• Sky Playback, a multi channel data playback tool, specially designed to reply ASTERIX data;
• Sky Simulator, an ASTERIX data simulation tool;
• Sky Converter, a radar front-end processor tool to filter, modify and convert live radar data;
• Sky Display, an ATC surveillance data display terminal.

Note: Some of above tools are not free and need to be purchased separately.

1.3 Manual Structure

This manual is divided into several sections.

Part 1. Data Inspection

• Chapter 1 Introduction
• Chapter 2 Getting Started
• Chapter 3 User Interface
• Chapter 4 Filter

Part 2. Data Manipulation

• Chapter 5 File Converter
• Chapter 6 Export to Google Earth KML

Part 3. Data Analyze

• Chapter 7 Radar Coverage Analyze
• Chapter 8 Radar North Marker & Sector Missing Analyze

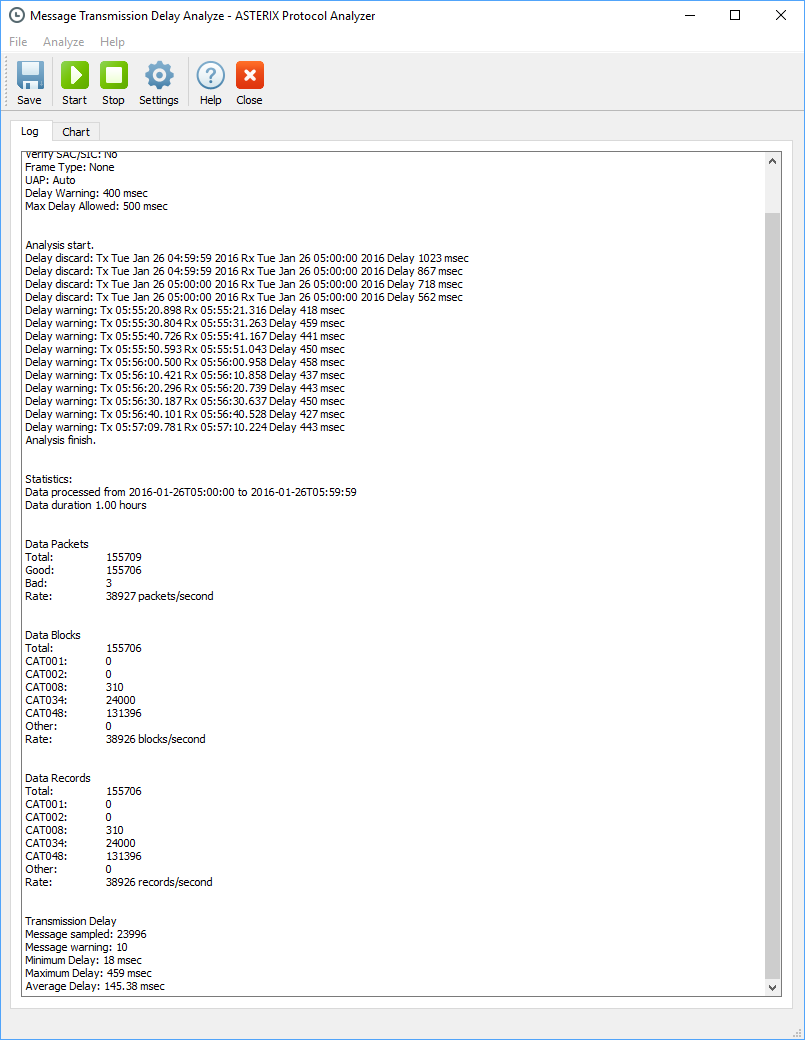

• Chapter 9 Message Transmission Delay Analyze

1.4 Copyrights

Sky Analyzer for ASTERIX is a product of Aerosys Corporation, please contact info@aerosys.cn for more information.

2 Getting Started

2.1 User Interface

Sky Analyzer for ASTERIX has a modern and easy to use user interface. The main window composes of menu bar, tool bars, status bar and main view.

All functions can be accessed through main menu, and major functions can be accessed through tool bar.

Detailed information of user interface can be accessed at chapter "User Interface".

2.2 ASTERIX Step by Step

A typical way of using Sky Analyzer for ASTERIX is to open and analyze data in recorded file. Below is an example to show how to do it step by step.

2.2.1 STEP 1. Prepare file with ASTERIX data

Sky Analyzer for ASTERIX supports different \ref sec_feature_file.

You can use the Data Recording and Playback tool to record and generate recording files. You can also use common tools like Wireshark or tcpdump to generate recording tiles.

Here, assuming we already have a data file named "radar.rex".

2.2.2 STEP 2. Open and load file

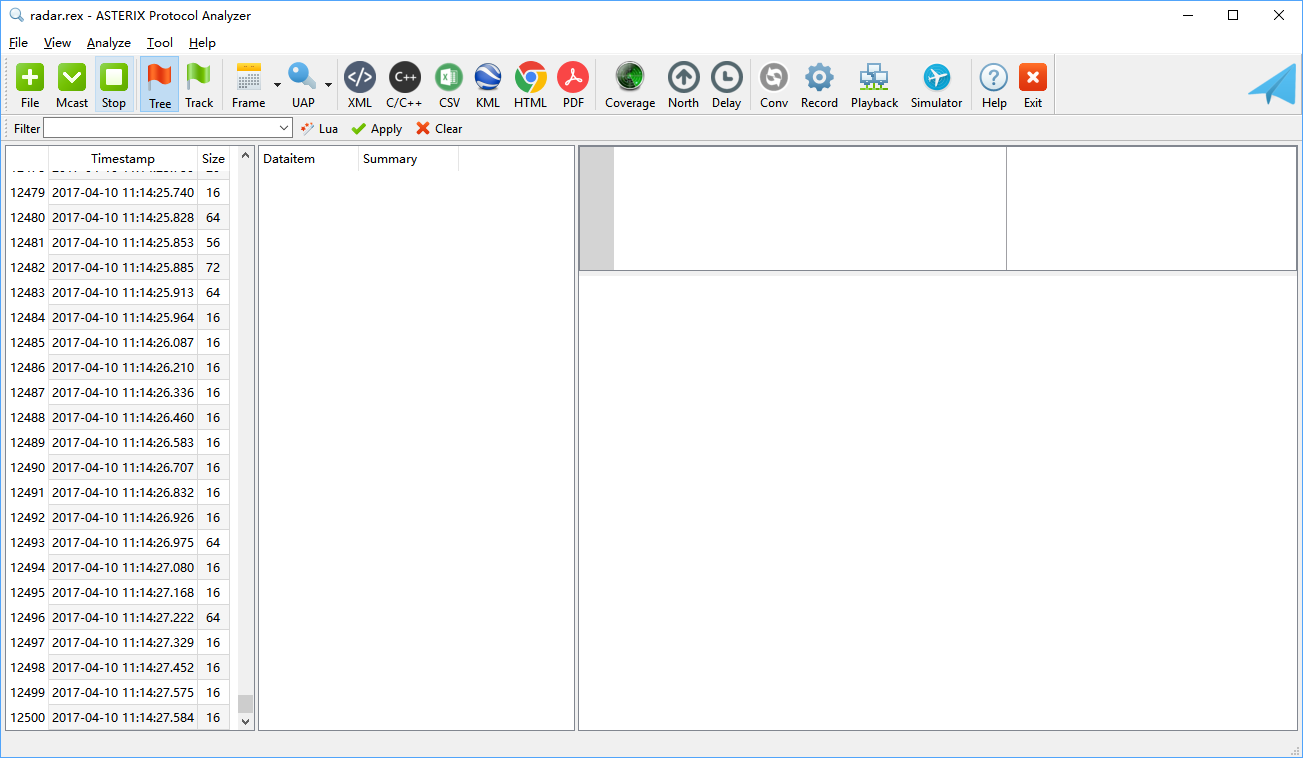

Launch the Sky Analyzer for ASTERIX application, select File -> Open File..., a standard Open File Dialog will appear.

Browse and select our data file "radar.rex".

In the left panel in main window, many data packets contained in the data file will be shown. A sequence number, time stamp, and size of data packet will be displayed.

In the title bar, the file name will be displayed.

If you don't need to load all packets contained in the data file, you can select File -> Stop Processing to stop the file loading process at any time.

2.2.3 STEP 3. Decode data

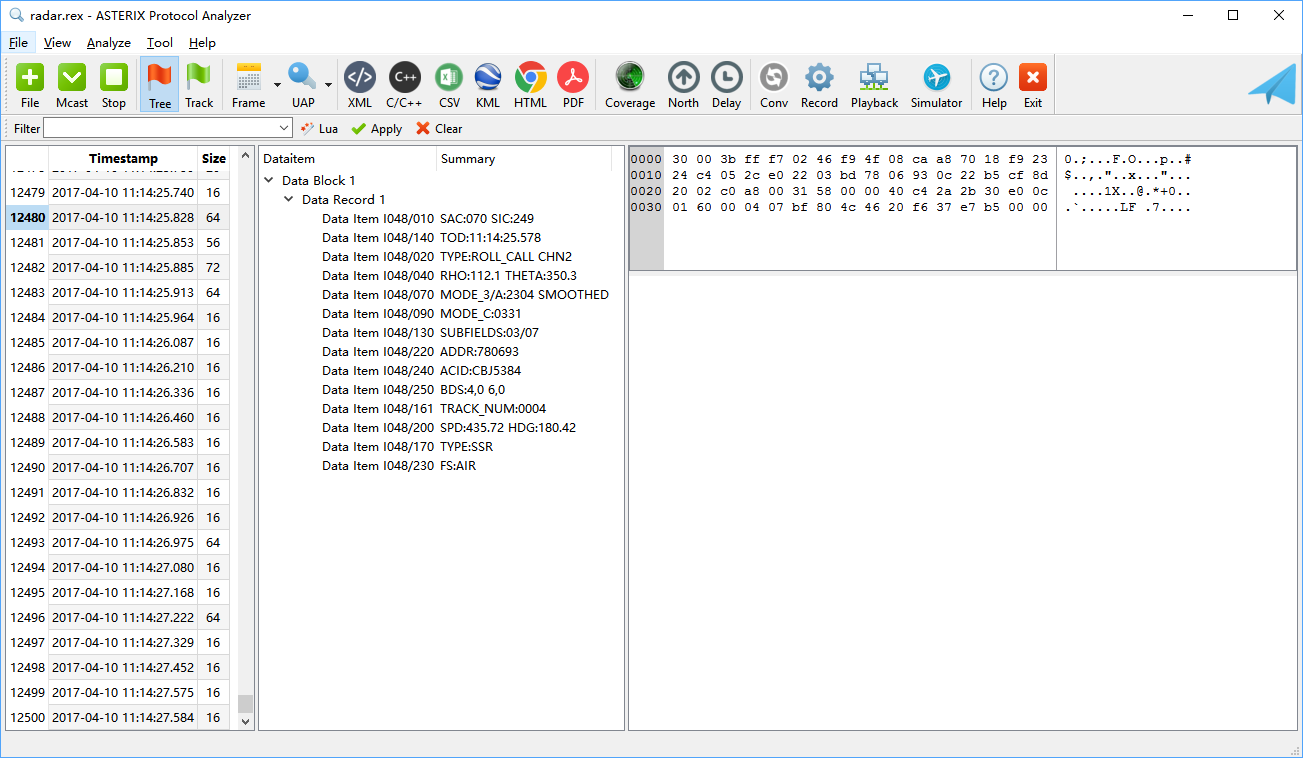

If the data packet contained in data file use default frame type (no frame) and default UAP (ASTERIX standard UAP), you can simply select one data packet, and the data block/record/item will be shown in the middle panel. Also the radar data of this packet will be shown in hex format in the top-right panel.

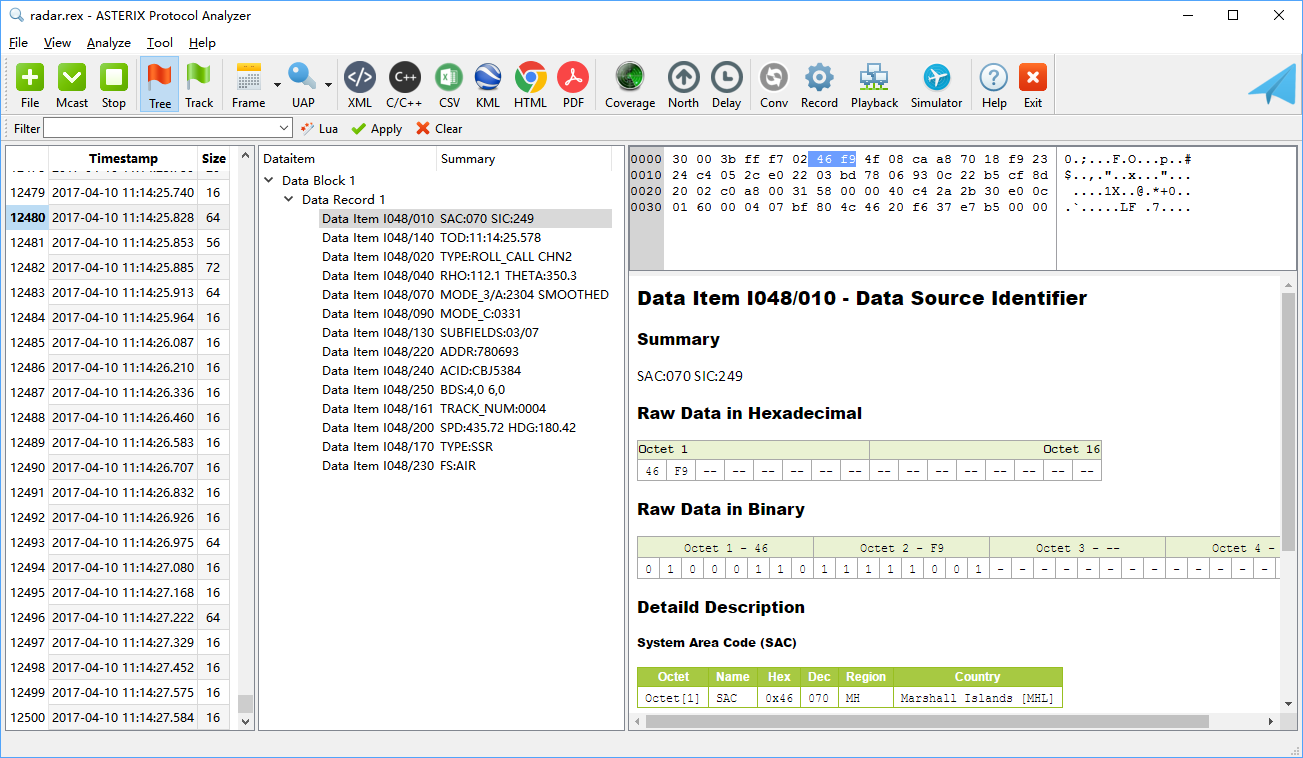

If you select any data record or data item in middle panel, the detail of this data record/item will shown in the bottom-right panel.

Also please note the data of selected data record/item will be highlighted.

On the other hand, if data packet is not in default frame type and UAP, it can not be correctlly decoded before you select correct one.

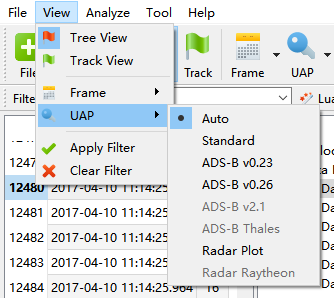

You can select View -> Frame to select frame type, and select View -> UAP to select UAP.

For UAP, if Auto UAP is selected, Sky Analyzer for ASTERIX will try to guess what is the correct UAP and try to decode data with it, but sometimes it may fail and select a wrong UAP, in this case you should manually select a proper UAP and force the system to decode data with selected UAP.

2.2.4 STEP 4. Inspect data

Once data is correctly decoded, you can use tree view and list view to inspect the detail of ASTERIX data.

2.2.5 STEP 5. Find data with filter

Normally, you will receive a plenty of data packets from a sensor even in a short time.

And a typical task to analyze ASTERIX is to find flights match some specific conditions. For example, flights with hijack alert. You can do this in an easy way by using the Filter function.

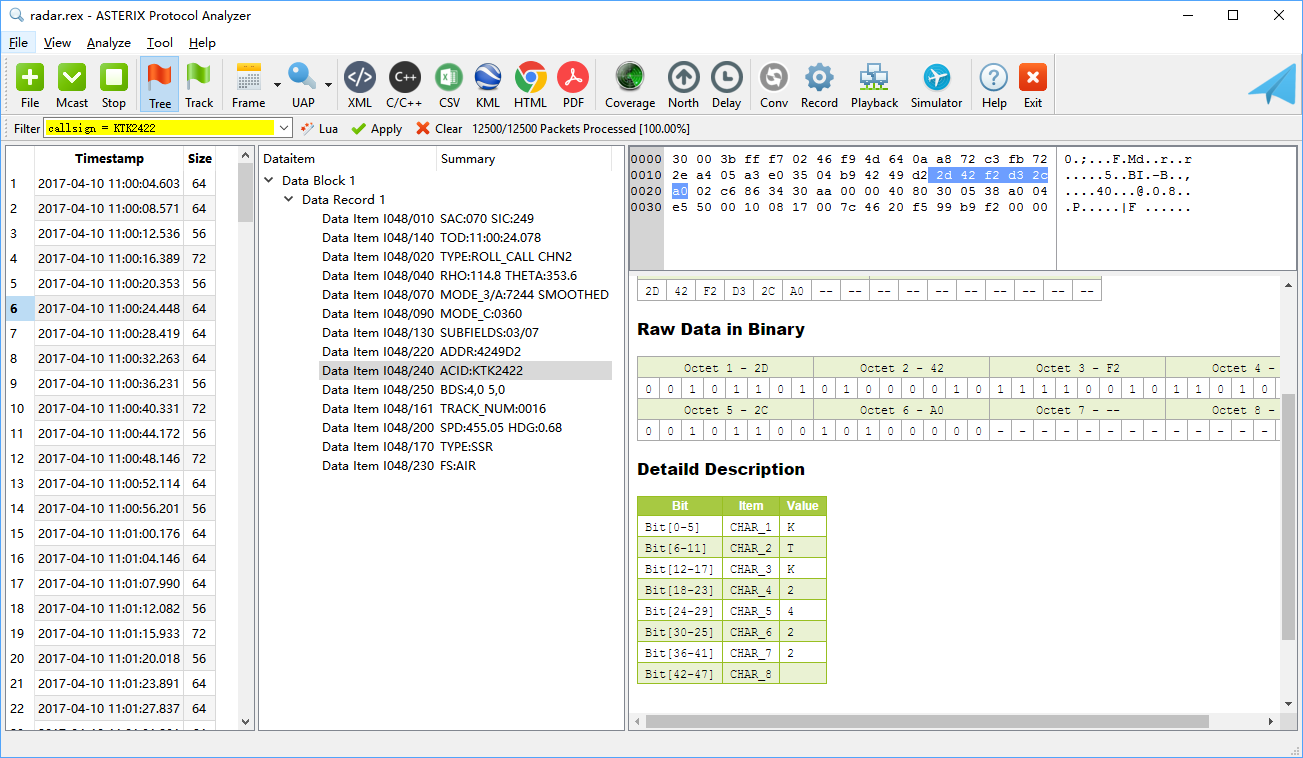

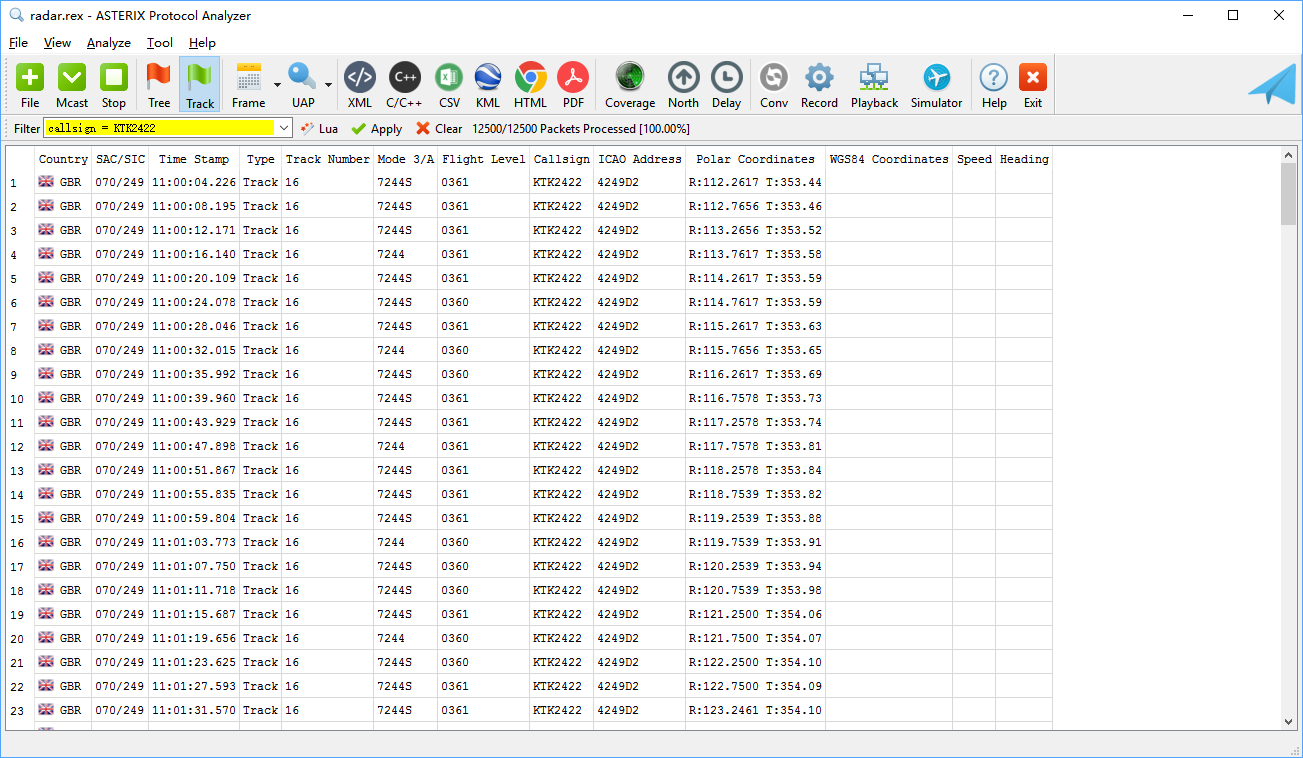

Here we try to trace flight "KTK2422". Type "callsign = KTK2422" in the filter toolbar, and press Apply, packets contain flight "KTK2422" will be shown in the UI.

For advanced use of Filter function, please refer to chapter "Filter".

2.2.6 STEP 6. Export data

Once you had find some data you are interested, you can then export and save it in other formats. Here we export the historical data of flight "KTK2422.

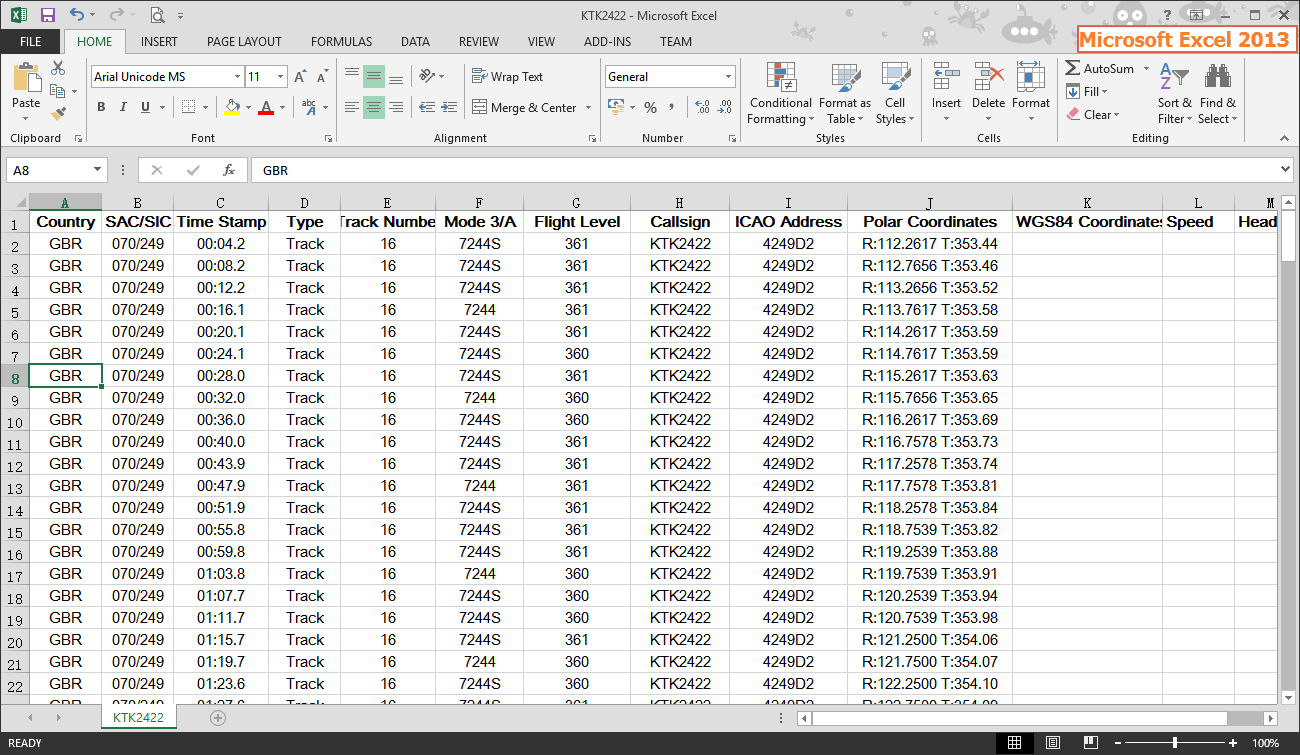

Select File -> Export Track List as CSV..., a standard File Save Dialog will appear, you can browse and save track list as a CSV file.

Later, you can use Microsoft Excel or other compatible application to open and edit this file.

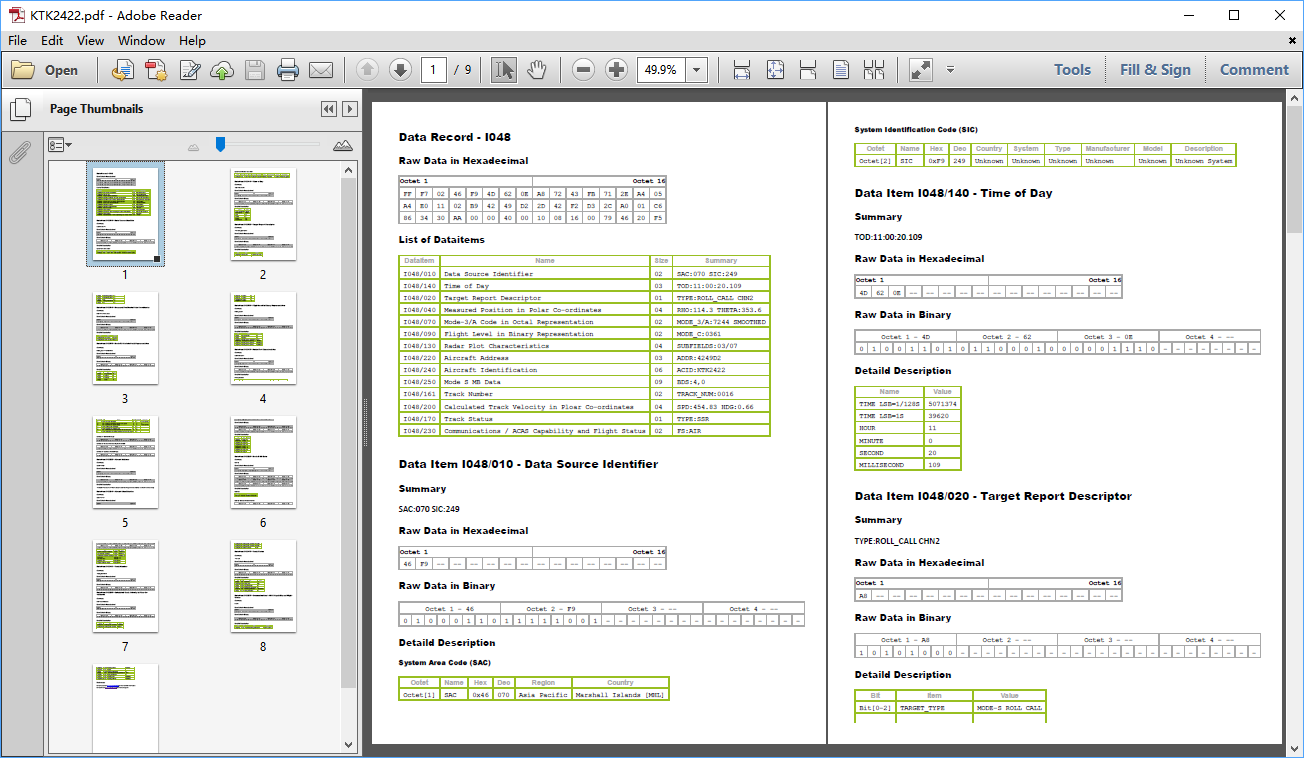

Similarly, you can export datil ASTERIX fields to Adobe PDF format, and view/print it with "Adobe Reader* or other compatible application.

3 User Interface

3.1 Introduction

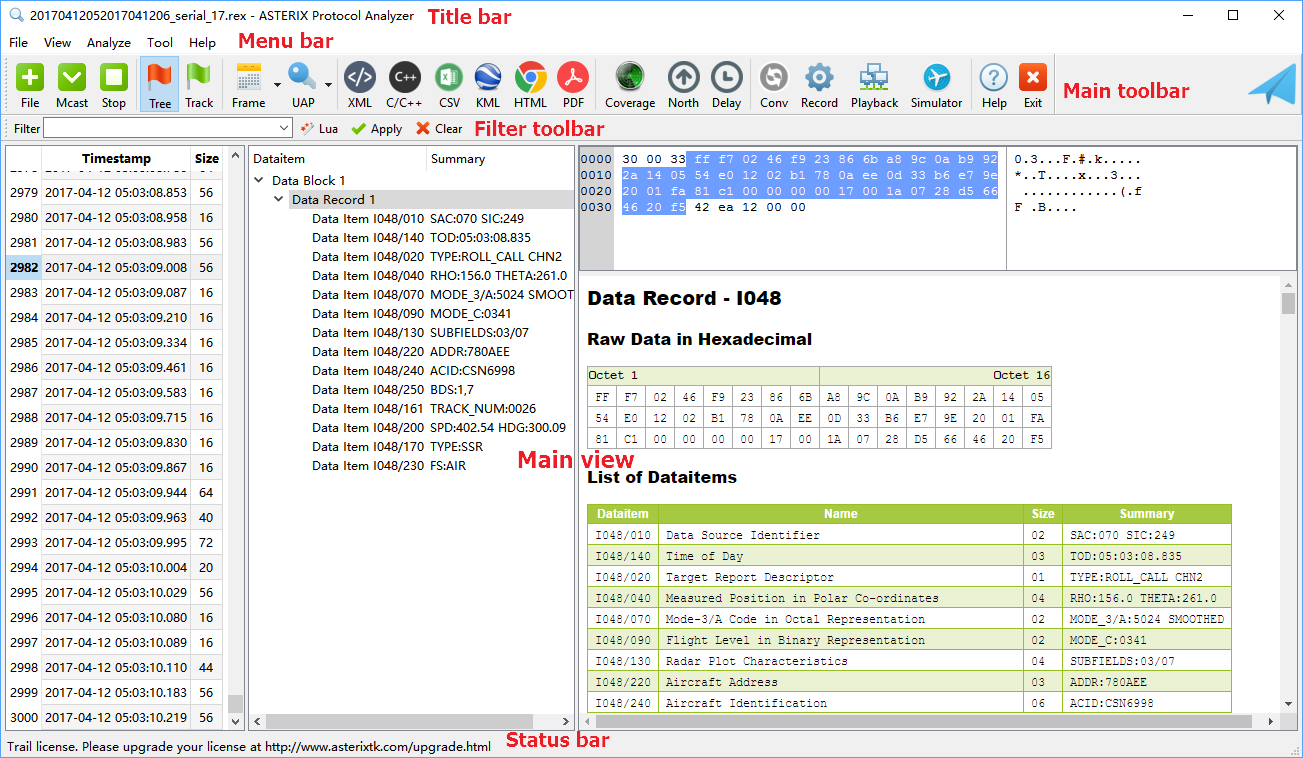

Sky Analyzer for ASTERIX has a modern and easy to use user interface. The main window composes of menu bar, tool bars, status bar and main view. All functions can be accessed through main menu, and major functions can be accessed through tool bar.

3.1.1 Title Bar

Title bar is on top of main window.

If a file is loaded, file name will be shown in title bar; if live UDP multicast is enabled, IP address and port number will be shown in title bar.

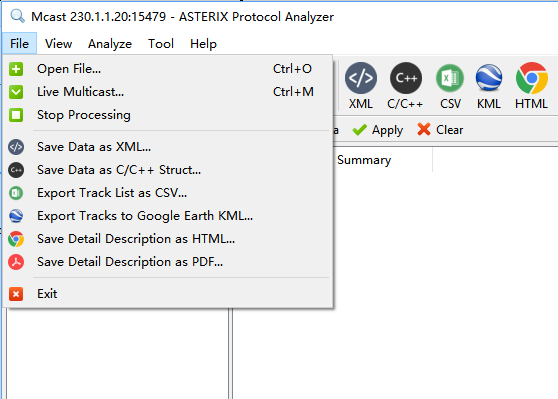

3.1.2 Menu Bar

Menu bar is below title bar. All functions can be accessed through cascade menu.

Below is a list of menu/submenu of Sky Analyzer for ASTERIX with description of each menu items.

Note: Some menu items listed above may not appear in your application, or not applicable in your application, it depends on your license type.

3.1.3 Tool Bar

There are several tool bars.

Main toolbar contains commonly used function tool buttons, the function is exactly the same with corresponding menu item.

Filter toolbar is used for filter function.

3.1.4 Status Bar

Status bar is at the bottom of main window, it shows status information and application message.

3.1.5 Main View

In the middle of main window, it is the main view. There are different types of view, message view and target list view.

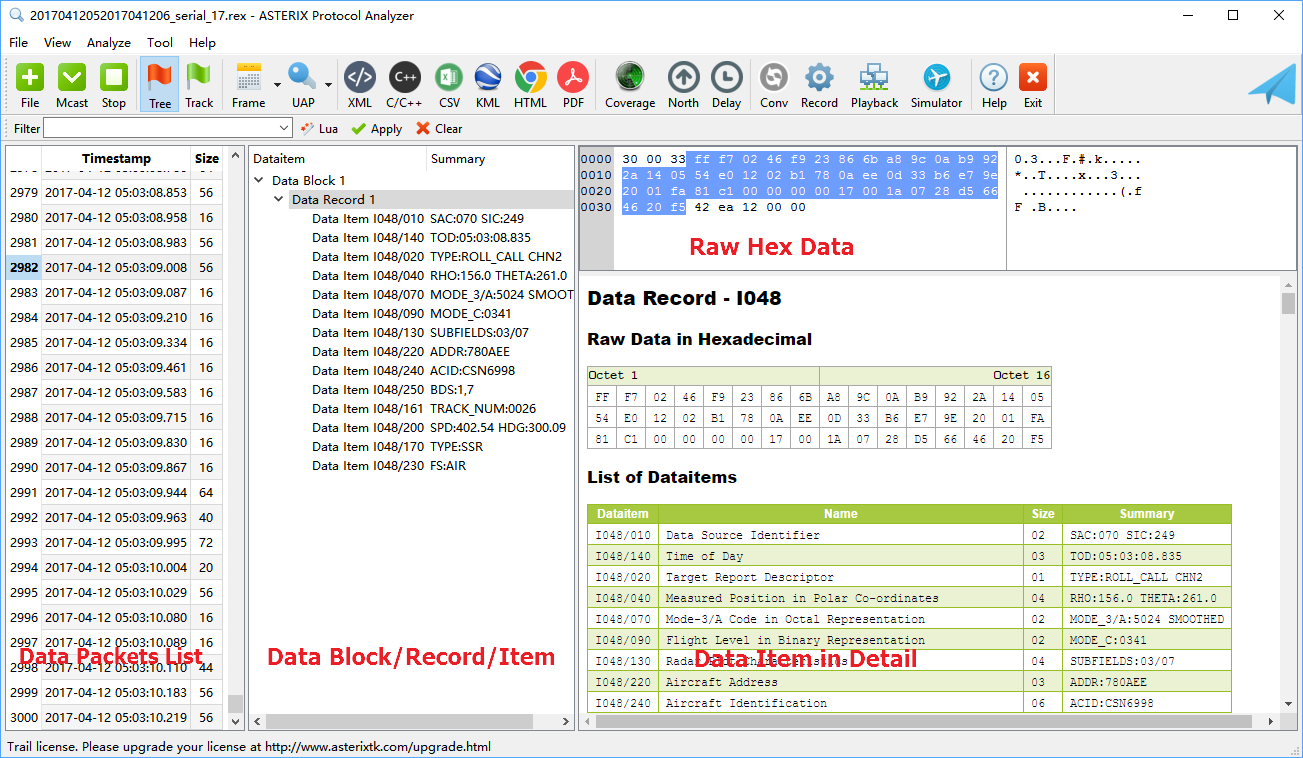

3.2 Message View

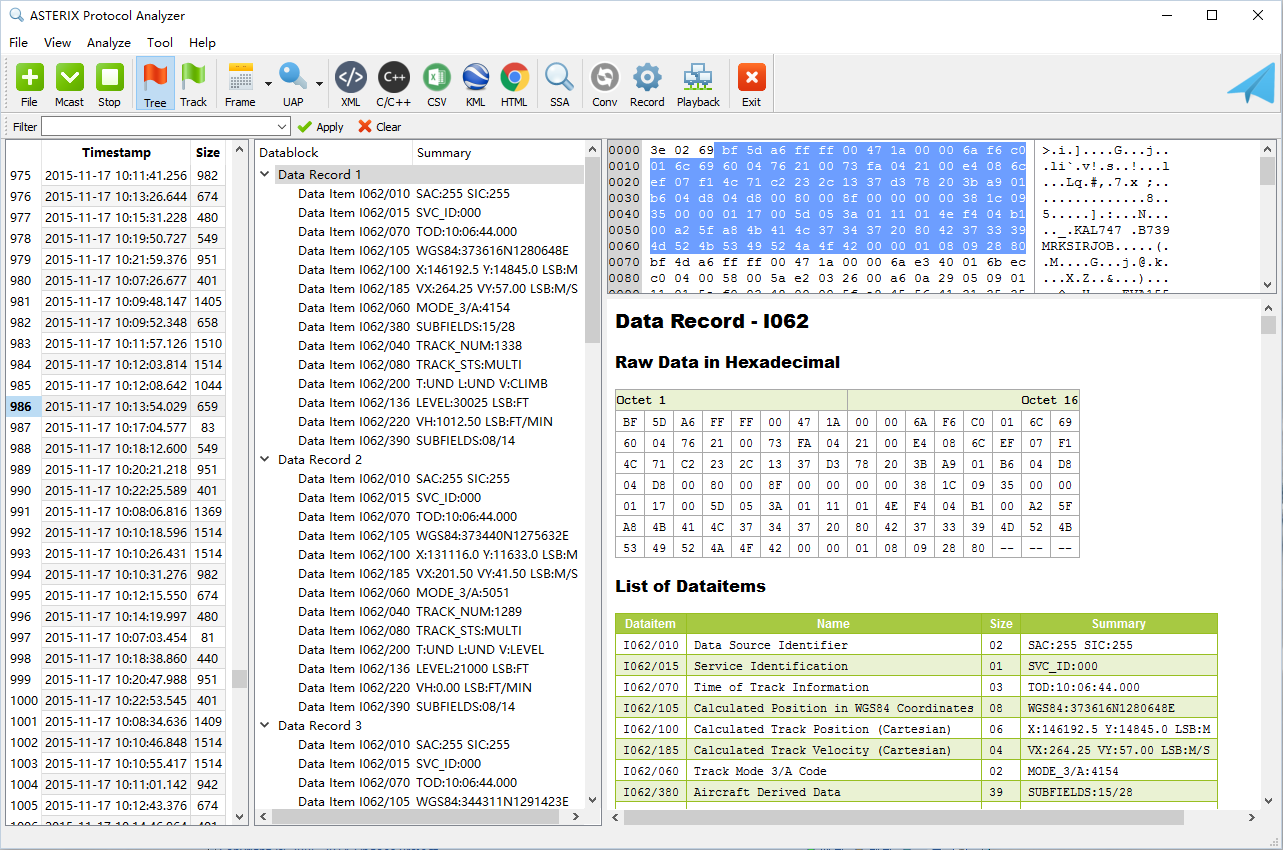

Message view is the default view after Sky Analyzer for ASTERIX starts up. In this view, ASTERIX data is shown in a tree style hierarchy.

The message view composes of four parts:

• Data packet list
• Data block/record/item tree
• Raw hex data
• Data record/item detail

3.2.1 Packet List

Packet list is on left of tree view, loaded data packets are shown in this list. A sequence number, timestamp and size is displayed for each data packet.

The timestamp here is the receiving UTC time, if data is loaded from file, it means the time when packet is saved into the file.

Note: For some file formats, timestamp is not available, the timestamp field will be displayed as "N/A".

Note: For some file formats, timestamp has only valid time, and no valid date, the timestamp field will be displayed with only time.

When one packet is selected, its content will be displayed in the raw hex data panel.

When one packet is selected, system will try to decode it with selected frame and UAP. If it can be successfully decoded, the structure of this data packet will be display in the data block panel.

3.2.2 ASTERIX Tree

ASTERIX tree is in the middle of tree view, it shows standard ASTERIX data struct in a tree style hierarchy, which are:

• Data Block
• Data Record
• Data Item

The concept of these terms are defined in Eurocontrol ASTERIX documents.

The encoding policy supported by Sky Analyzer for ASTERIX is:

• One data packet can include one or more data blocks
• One data block can include up to 32 data records
• One data record can include up to 32 data items

When one data block or data record or data item is selected, the corresponding data will be highlighted in raw data display panel.

When one data record or data item is selected, the decoded ASTERIX fields will be displayed in detail in detail panel.

3.2.3 Raw Data Display

Raw data display is on top-right of tree view. Data of data packet will be shown in hexadecimal format in it. If one data block/record/item is selected, the corresponding data will highlighted.

3.2.4 Detail Display

Detail display panel is on bottom-right of tree view. It is a standard web browser, when a data record/item is selected, a HTML page will be generated and displayed in detail display panel.

The content in this panel depends on the selected data.

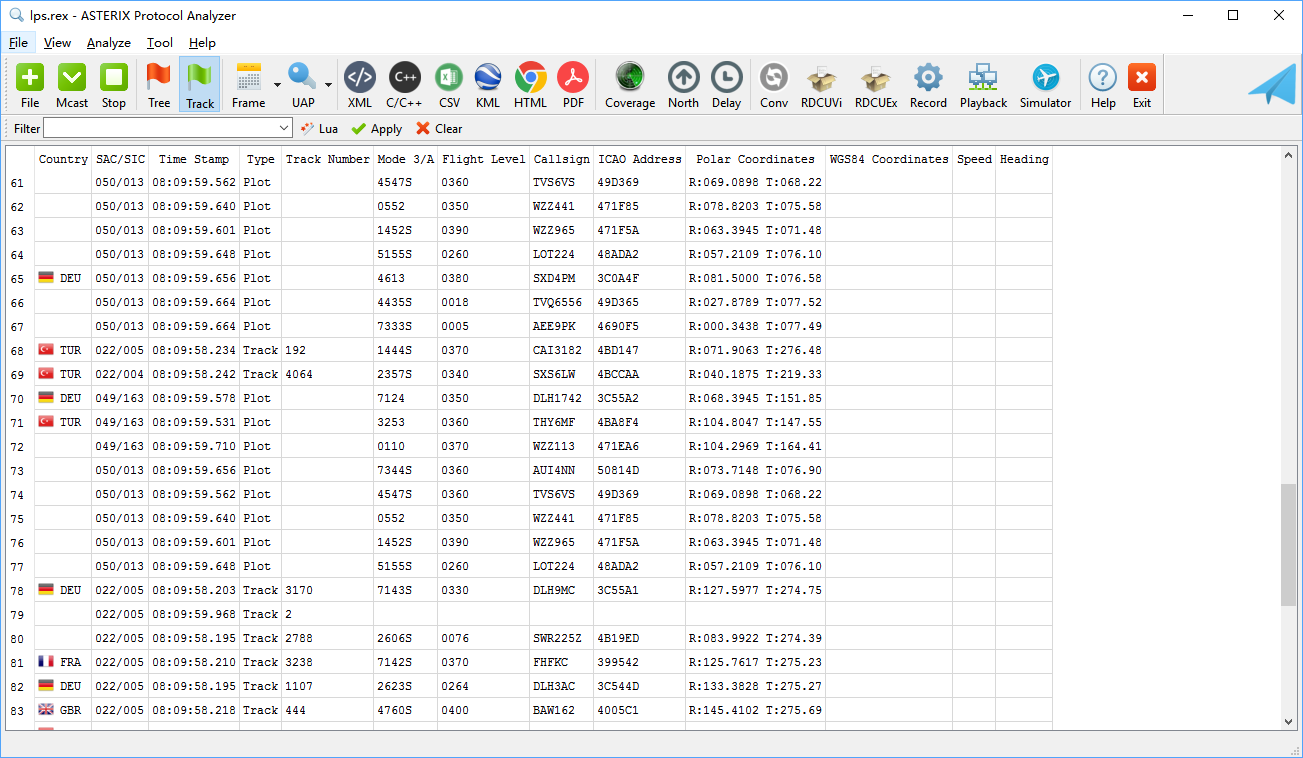

3.3 Target List View

Target list view is used to display important properties of aircraft in a table.

The columns in this table are:

When system reads one qualified data record, it will extract properties included in the data record, and generate a row. If any property is not applicable to the data record, the corresponding column will be displayed as blank.

4 Filter

4.1 Introduction

The filter function allows you to show only the data you are interesting, it is useful when you want to

• Trace one or several specific aircraft(s), by track number, callsign or Mode-S address;
• Find data with special characteristic, e.g. SSR is 7500;
• Analyze data from a specific sensor;
• Etc.

When a filter is applied

• System will check all loaded data, and shows only data which can match the filter;
• System will check new incoming data (read from file, or received from network), and shows only data which can match the filter;
• Unmatched data will not be shown, but still kept in memory.

There are two types of filter, simple filter and Lua filter.

4.2 Simple Filter

A simple filter, as explained by its name, is simple and easy to use. It's useful when you just need to filter data with one condition, e.g. callsign is KAR2681.

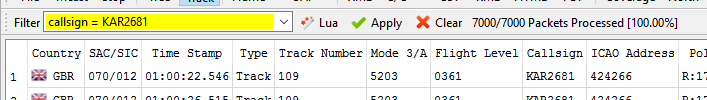

In main window, there is a filter toolbar, by default it is in simple filter mode. You can simply type a filter command, and press "Enter" key or click on "Apply" button, the filter will be applied.

When click on "Clear" button, the filter will be cancelled.

Warning: If a large number of messages have been loaded, system need to reload all data when you cancel a filter, this process could take a while and cause UI no response for a short time. It will recover when all data is reloaded.

4.2.1 Syntax

The syntax of simple filter is:

xxxxxxxxxx
1
1
KEYWORD = VALUE

The rules for simple filter are:

• Keyword must be known by system;
• Only one keyword can be used;
• Both keyword and value are case insensitive;
• All spaces will be ignored.

A typical simple filter looks like:

xxxxxxxxxx
1
1
callsign = KAL937

It means, show data with callsign field and its callsign is "KAL937".

To make it's easier to write, this filter is equivalent to:

xxxxxxxxxx
1
1
cs=kal937

Here "cs" is the abbreviation of "callsign", and "kal" is the same with "KAL" or "Kal".

Below is a list of keywords supported by simple filter.

4.3 Lua Filter

Lua filter, is based on Lua script language. You can use Lua script to write a complex filter, and match specific data you are interesting.

For example, with Lua filter, you can match data which is

from aircrafts belong to Lufthansa (DLH), registered in Germany, with flight level between F290 to F320, and are in emergency status.

To use lua filter, first you need to click on the "Lua" button in filter toolbar, to switch the filter from simple filter mode to Lua filter mode, and a new button "Edit" will appear.

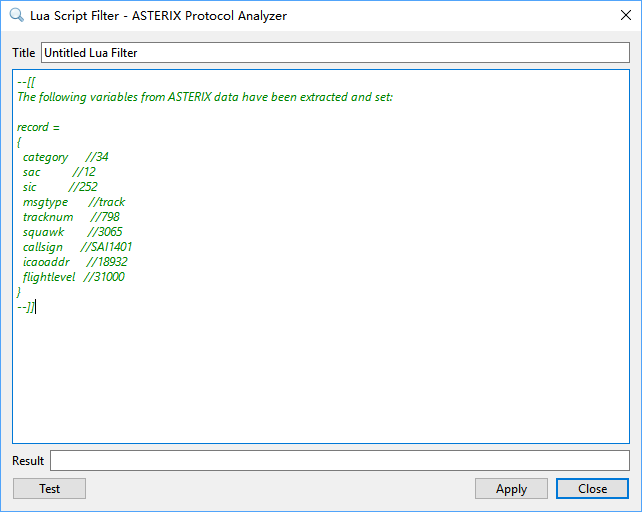

Then, after clicking "Edit" button, a "Lua Script Filter" window will appear.

In this window, you can type any valid Lua script. A syntax highlight mechanism similar with any code editor has been integrated into this window, so you can detect potential errors in script when you type them.

Please be aware of the green color comments in this window, those are preset data which can be used to test your script. When you finish your filter script, you can click on "Test" button, and system will try to use you script to match data in comments, and show matching result in the "Result" text field. The result can be:

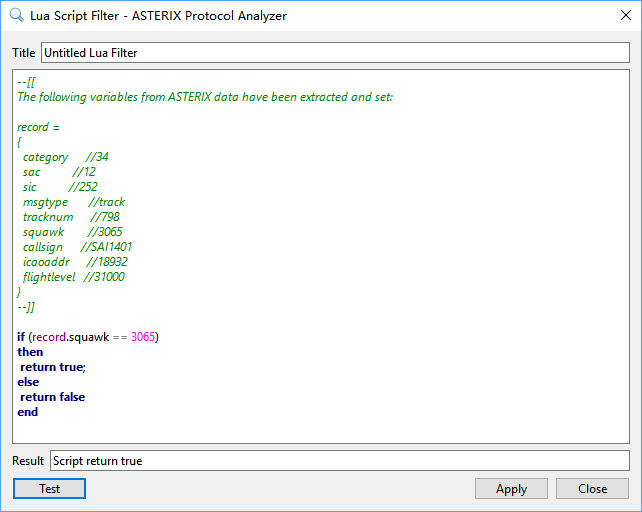

• True, your script match test data and return true.
• False, your script doesn't match test data and return false.

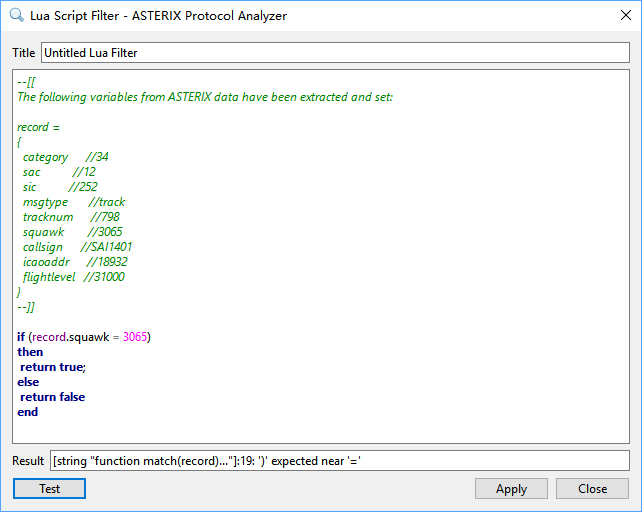

• Error, there is error when interpreting your script, an error message will be shown in "Result" text field.

When your script is ready to use, you can click "Apply" button to apply the filter, or click "Close" button to close this window without applying the filter.

When click on "Clear" button in filter toolbar, the filter will be cancelled.

4.3.1 Syntax

The syntax of Lua script language can be found at Lua website. The Lua version used by Lua filter is 5.3.

Every time, when system need to check if one data record can match the filter or not, it will use the data to construct a Lua table name record. The following fields are included in the record table:

If any field is not applicable, it will be set to nil.

The filter script should check if the data contained in record can match its purpose or not. If match, the script must return true, and the record will be kept in result; if not match, the script must return false, and the record will be ignored.

Example:

xxxxxxxxxx
6
1
if (string.sub(record.callsign, 1, 3) == "DLH" and record.squawk == 7500)
2
then
3
 return true;
4
else
5
 return false
6
end

This script means, if the callsign in record starts with "DLH" and squawk is 7500 (hijack), the data will match the filter and be kept in result, all others will be ignored.

5 File Converter

5.1 Introduction

File Converter is a tool which can make conversion between different recording formats.

It reads data packet from input file, extract payload data from frame, and save data into another file format.

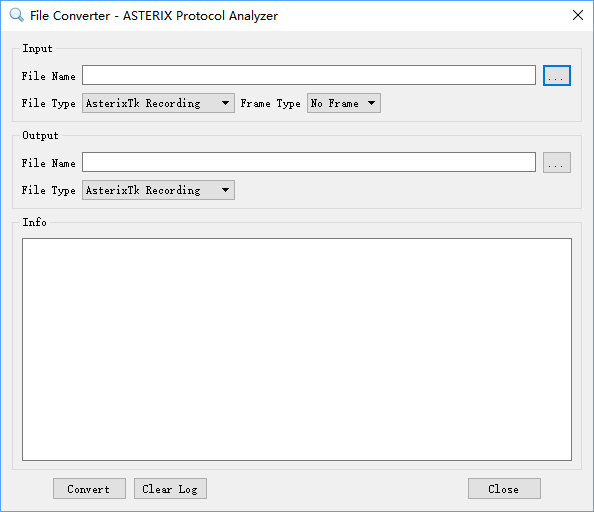

5.2 Usage

5.2.1 Input

File Name, the input file path. File must be readable.

File Type, the input file formats. Different with other functions, File Converter will not automatically detect file format, it will try to read file according to the file format selected here.

Note: Depending on your license type, different file formats will be listed here.

Frame Type, the frame type of data packets contained in input file.

Note: File Converter will extract payload data according to selected frame type, and save it into output file. So if you want to keep the original frame in output file, you should select "No Frame" here.

5.2.2 Output

File Name, the output file path. File must be writable.

File Type, the output file formats. File Converter will save output file into selected format regarding less the file name suffix.

5.2.3 Information

When you press Convert button, File Converter will starts to make conversion and logging messages will be displayed in info panel. Error messages will be shown when error occurs during the conversion.

6 Export to Google Earth KML

6.1 Introduction

Sky Analyzer for ASTERIX provides a tool to export tracks into KML format, and later it's possible to visualize the tracks in Google Earth application.

To generate KML file, the ASTERIX data record must contain the following information:

• Valid track number or ICAO 24-bit address
• Valid position in WGS-84 coordinates

For CAT062

• I062/040 - Track Number
• I062/105 - Calculated Track Position (WGS-84)
• I062/380 - Aircraft Derived Data, subfield #1

6.2 Operation

The Google Earth KML export dialog is as below.

It composes the following options:

Result

Here are samples of generated KML in Google Earth.

7 Radar Coverage Analyze

7.1 Introduction

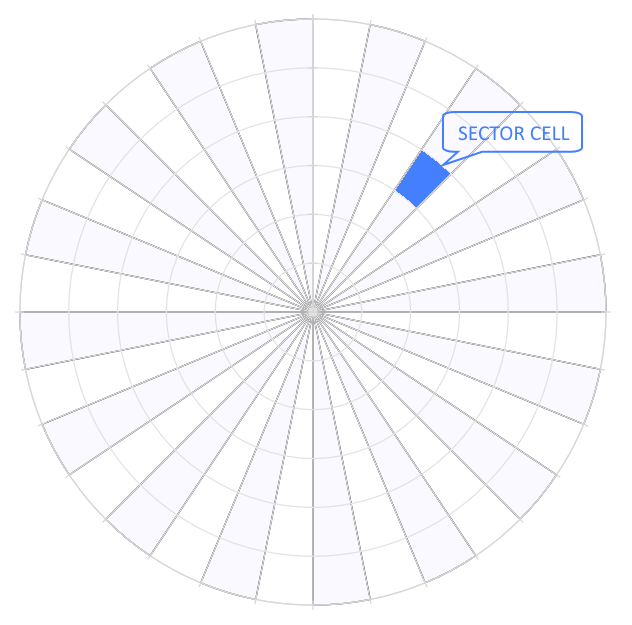

The radar coverage analyze tool aims to generate radar coverage map in different levels, by using historical plots. Internally, the coverage surface of each level is divided into many sector cells. The angle of each cell is 1 ACP (≈0.08789°), and the edge length is 1 NM.

When more than 3 plots are detected in one cell, this cell will be marked as "covered". And with enough plots of different azimuth and distance from radar site, it’s able to determine the coverage of every cell and finally get the coverage map of the whole surface. Considering most civil flights operate in limited predefined routes, to get a full coverage map it may need a long period (more than one month) of recorded plots.

7.2 Preparation

To generate an useful coverage map, you need to prepare recorded radar plots in ASTERIX CAT001 or CAT048 formats. And the following data items shall exist. To generate an useful coverage map, you need to prepare recorded radar plots in ASTERIX CAT001 or CAT048 formats. And the following data items shall exist.

For CAT001

• I001/010 - Data Source Identifier
• I001/040 - Measured Position in Polar Coordinates
• I001/090 - Mode-C Code in Binary Representation

For CAT048

• I048/010 - Data Source Identifier
• I048/040 - Measured Position in Slant Polar Coordinates
• I048/090 - Flight Level in Binary Representation

Plots are preferred as they are not filtered by radar tracker software. However tracks are accepted and measured as they are not smoothed by radar tracker.

Recording shall be stored in XML recording file format (.rex files). The File Converter can be used to convert files in other formats into REX format.

7.3 Main Window

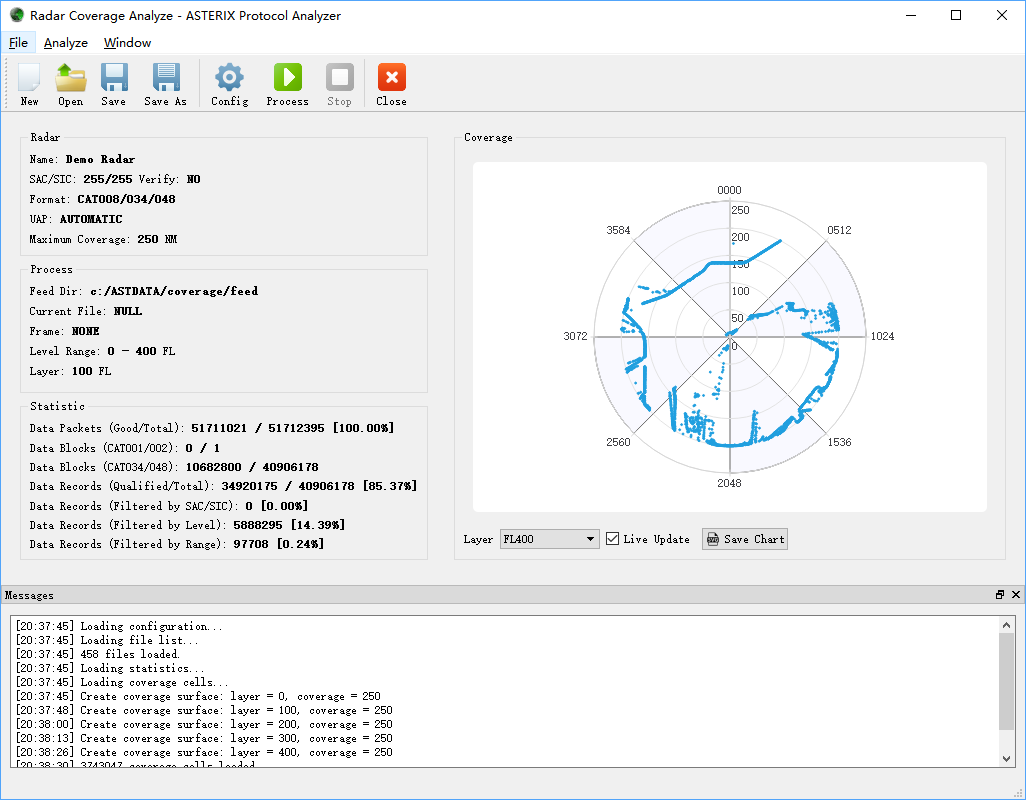

The main window of radar coverage analyze tool is as below.

It composes of the following parts:

• Actions

  Menu and tool bars, including select-able menu items and tool buttons for different actions.

• Messages

  On bottom of the window, messages and logs are shown here.

• Information Panel

  On left of the window, displays important configuration and statistic information.

• Coverage Chart

  On right of the window, the coverage map of selected level will be displayed here.

7.3.1 Actions

7.3.2 Statistics

7.4 Configuration Window

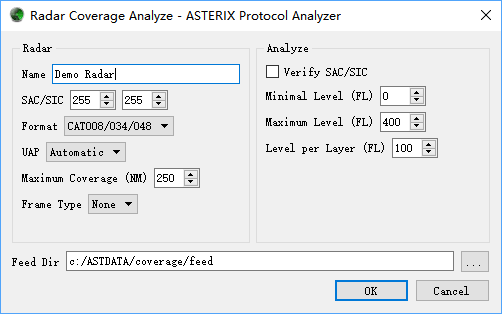

The configuration window is as below.

It contains parameters used for generating radar coverage map.

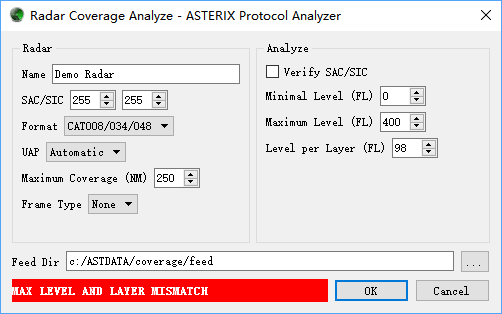

If any field contains an error, a warning message will be displayed.

8 Radar North Marker & Sector Missing Analyze

8.1 Introduction

The radar north marker and sector message missing analyze tool is used to detect any missing north marker message and sector message received from a specific radar.

For north marker message, system will calculate time interval of two north marker messages. If the interval is greater than radar rotation period plus a tolerance value, system will assume one north marker message is missing, and a warning message will be printed.

For sector message, system will check if the sector number in a sequence of messages is continue. If not, system will assume one or more sector messages are missing, and warning message(s) will be printed.

8.2 Preparation

To make a correct analyze on north marker and sector messages, it requires:

• A valid time is included in north marker message
• A valid sector is included in sector message

It means, the following dataitems must be included in received ASTERIX message.

Category 002

• I002/000 - Message Type
• I002/030 - Time of Day
• I002/020 - Sector Number

Category 034

• I034/000 - Message Type
• I034/030 - Time of Day
• I034/020 - Sector Number

8.3 User Interface

The main window of radar north marker & sector missing analyze tool is as below.

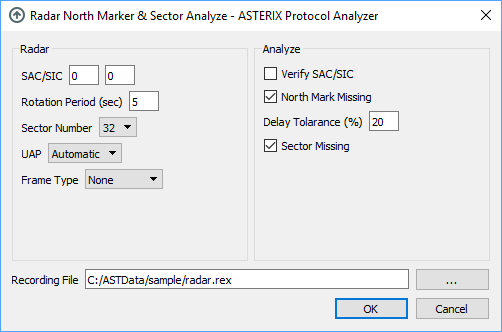

Before starting analyze, it's necessary to open the configuration window by clicking on Settings button.

The meaning of each parameter is listed below.

When all parameters are set, analyze can be started by clicking on Start button; and process can be interrupted by clicking on Stop button.

During the process, if any north marker or sector message missing is detected, a log message will be printed.

When analyze finish, statistic information will be printed.

9 Message Transmission Delay Analyze

9.1 Introduction

The message transmission delay analyze tool is used to calculate delay time during transmission from surveillance sensor to receiver.

System will compare the timestamp encoded in ASTERIX message, which is the sensor transmission time (Tx), and the timestamp encoded in data packet, which is the receiving time (Rx). The difference between Rx and Tx is considered as transmission delay.

When the calculated is greater than a warning level, a message will be shown in log.

When the calculated is greater than a discard level, or is less than zero, it will not be used for further statistic, and a message will be shown in log.

9.2 Preparation

To generate a correct delay time, it requires:

• A valid Rx time is included in data packet
• A valid Tx time is included in ASTERIX data
• Both Rx and Tx time must be UTC time, or in a same time zone
• Both Rx and Tx clock must be synchronized with a common time source, normally GPS

The timestamp in the following dataitems will be used as Tx time:

• I002/030 - Time of Day
• I034/030 - Time of Day

9.3 User Interface

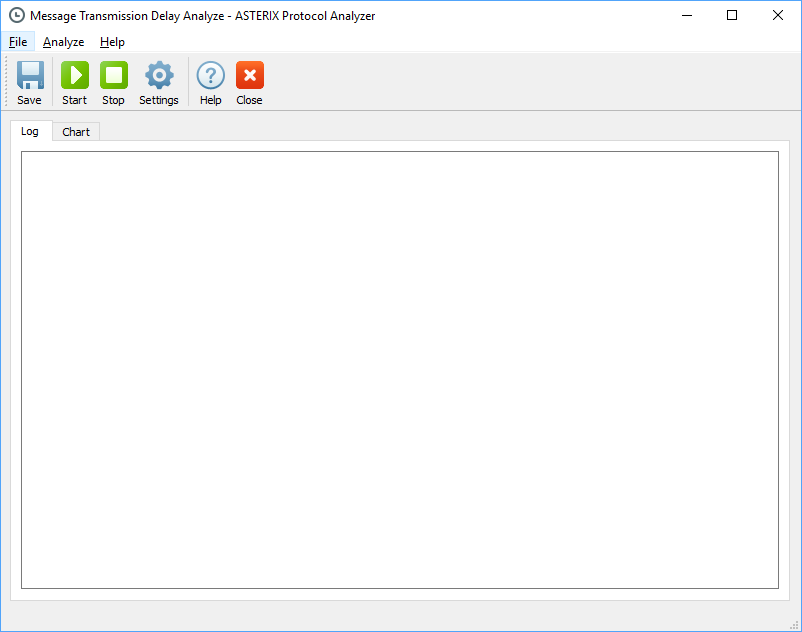

The main window of message transmission delay analyze tool is as below.

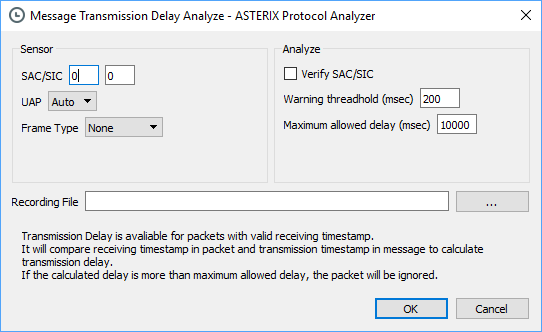

Before starting analyze, it's necessary to open the configuration window by clicking on Settings button.

The meaning of each parameter is listed below.

When all parameters are set, analyze can be started by clicking on Start button; and process can be interrupted by clicking on Stop button.

During the process, if any message match the warning or disgard thredhold, a log message will be printed.

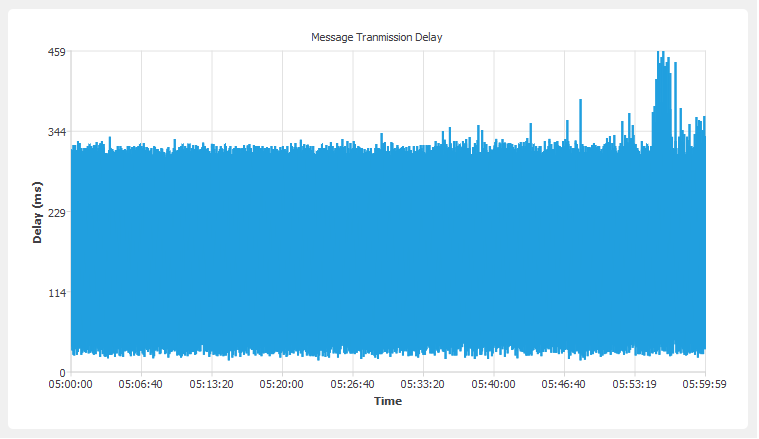

When analyze finish, statistic information will be printed, and a delay chart will be shown in the Chart table.
