ASTERIX CAT020 - MLT Messages. More...

#include "datarecord.h"
#include "dataitem.h"
#include "cat_generic.h"

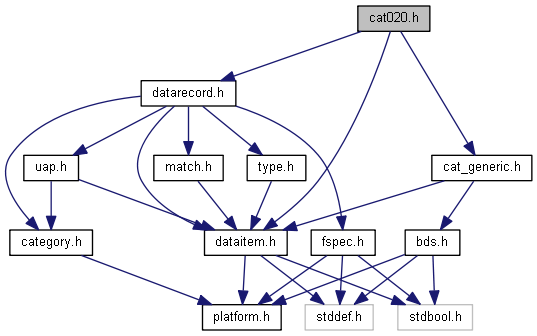

Include dependency graph for cat020.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	ast_dataitem_020_020_t
	Data Item I020/020 - Target Report Descriptor. More...

struct	ast_dataitem_020_170_t
	Data Item I020/170 - Track Status. More...

struct	ast_dataitem_020_230_t
	Data Item I020/230 - Communications/ACAS Capability and Flight Status. More...

struct	ast_dataitem_020_400_t
	Data Item I020/400 - Contributing Receivers. More...

struct	ast_dataitem_020_500_t
	Data Item I020/500 - Position Accuracy. More...

struct	ast_datarecord_020_t
	Data Record I020 - MLT Messages. More...

Macros
#define	ast_dataitem_020_010_get_size ast_dataitem_data_source_identifier_get_size

#define	ast_dataitem_020_010_decode ast_dataitem_data_source_identifier_decode

#define	ast_dataitem_020_010_encode ast_dataitem_data_source_identifier_encode

#define	ast_dataitem_020_010_get_summary ast_dataitem_data_source_identifier_get_summary

#define	ast_dataitem_020_010_get_detail_html ast_dataitem_data_source_identifier_get_detail_html

#define	ast_dataitem_020_020_get_size ast_dataitem_get_size_var_2_byte
	Get size function. More...

#define	ast_dataitem_020_030_get_size ast_dataitem_get_size_var_2_byte

#define	ast_dataitem_020_041_get_size ast_dataitem_position_wgs84_get_size

#define	ast_dataitem_020_041_decode ast_dataitem_position_wgs84_decode

#define	ast_dataitem_020_041_get_summary ast_dataitem_position_wgs84_get_summary

#define	ast_dataitem_020_041_get_detail_html ast_dataitem_position_wgs84_get_detail_html

#define	ast_dataitem_020_042_get_size ast_dataitem_position_cartesian_get_size

#define	ast_dataitem_020_042_decode ast_dataitem_position_cartesian_decode

#define	ast_dataitem_020_042_get_summary ast_dataitem_position_cartesian_get_summary

#define	ast_dataitem_020_042_get_detail_html ast_dataitem_position_cartesian_get_detail_html

#define	ast_dataitem_020_050_get_size ast_dataitem_mode_2_code_get_size

#define	ast_dataitem_020_070_get_size ast_dataitem_mode_3a_code_get_size

#define	ast_dataitem_020_070_decode ast_dataitem_mode_3a_code_decode

#define	ast_dataitem_020_070_encode ast_dataitem_mode_3a_code_encode

#define	ast_dataitem_020_070_get_summary ast_dataitem_mode_3a_code_get_summary

#define	ast_dataitem_020_070_get_detail_html ast_dataitem_mode_3a_code_get_detail_html

#define	ast_dataitem_020_090_get_size ast_dataitem_mode_c_code_get_size

#define	ast_dataitem_020_090_decode ast_dataitem_mode_c_code_decode

#define	ast_dataitem_020_090_encode ast_dataitem_mode_c_code_encode

#define	ast_dataitem_020_090_get_summary ast_dataitem_mode_c_code_get_summary

#define	ast_dataitem_020_090_get_detail_html ast_dataitem_mode_c_code_get_detail_html

#define	ast_dataitem_020_105_get_size ast_dataitem_height_get_size

#define	ast_dataitem_020_105_decode ast_dataitem_height_decode

#define	ast_dataitem_020_105_get_summary ast_dataitem_height_get_summary

#define	ast_dataitem_020_105_get_detail_html ast_dataitem_height_get_detail_html

#define	ast_dataitem_020_110_get_size ast_dataitem_height_get_size

#define	ast_dataitem_020_110_decode ast_dataitem_height_decode

#define	ast_dataitem_020_110_get_summary ast_dataitem_height_get_summary

#define	ast_dataitem_020_110_get_detail_html ast_dataitem_height_get_detail_html

#define	ast_dataitem_020_140_get_size ast_dataitem_time_of_day_get_size

#define	ast_dataitem_020_140_decode ast_dataitem_time_of_day_decode

#define	ast_dataitem_020_140_encode ast_dataitem_time_of_day_encode

#define	ast_dataitem_020_140_get_summary ast_dataitem_time_of_day_get_summary

#define	ast_dataitem_020_140_get_detail_html ast_dataitem_time_of_day_get_detail_html

#define	ast_dataitem_020_161_get_size ast_dataitem_track_number_get_size

#define	ast_dataitem_020_161_decode ast_dataitem_track_number_decode

#define	ast_dataitem_020_161_encode ast_dataitem_track_number_encode
	Encode function. More...

#define	ast_dataitem_020_161_get_summary ast_dataitem_track_number_get_summary

#define	ast_dataitem_020_161_get_detail_html ast_dataitem_track_number_get_detail_html

#define	ast_dataitem_020_170_get_size ast_dataitem_get_size_var_2_byte
	Get size function. More...

#define	ast_dataitem_020_202_get_size ast_dataitem_velocity_cartesian_get_size

#define	ast_dataitem_020_202_decode ast_dataitem_velocity_cartesian_decode

#define	ast_dataitem_020_202_get_summary ast_dataitem_velocity_cartesian_get_summary

#define	ast_dataitem_020_202_get_detail_html ast_dataitem_get_detail_html_dummy

#define	ast_dataitem_020_210_get_size ast_dataitem_get_size_fixed_2_byte
	Data Item I020/210 - Calculated Aceleration. More...

#define	ast_dataitem_020_220_get_size ast_dataitem_target_address_get_size

#define	ast_dataitem_020_220_decode ast_dataitem_target_address_decode

#define	ast_dataitem_020_220_encode ast_dataitem_target_address_encode

#define	ast_dataitem_020_220_get_summary ast_dataitem_target_address_get_summary

#define	ast_dataitem_020_220_get_detail_html ast_dataitem_target_address_get_detail_html

#define	ast_dataitem_020_230_get_size ast_dataitem_get_size_fixed_2_byte
	Get size function. More...

#define	ast_dataitem_020_245_get_size ast_dataitem_target_id_get_size

#define	ast_dataitem_020_245_decode ast_dataitem_target_id_decode

#define	ast_dataitem_020_245_get_summary ast_dataitem_target_id_get_summary

#define	ast_dataitem_020_245_get_detail_html ast_dataitem_target_id_get_detail_html

#define	ast_dataitem_020_250_get_size ast_dataitem_modes_mb_get_size

#define	ast_dataitem_020_250_decode ast_dataitem_modes_mb_decode

#define	ast_dataitem_020_250_get_summary ast_dataitem_modes_mb_get_summary

#define	ast_dataitem_020_250_get_detail_html ast_dataitem_modes_mb_get_detail_html

#define	ast_dataitem_020_260_get_size ast_dataitem_get_size_fixed_7_byte
	Data Item I020/260 - ACAS Resolution Advisory Report. More...

#define	ast_dataitem_020_300_get_size ast_dataitem_get_size_fixed_1_byte
	Data Item I020/300 - Vehicle Fleet Identification. More...

#define	ast_dataitem_020_310_get_size ast_dataitem_get_size_fixed_1_byte
	Data Item I020/310 - Pre-programmed Message. More...

#define	AST_MAX_MLAT_RECEIVERS 256

#define	ast_dataitem_020_400_get_size ast_dataitem_get_size_rep_1_byte
	Get size funciton. More...

#define	ast_dataitem_020_REF_get_size ast_dataitem_reserved_expansion_field_get_size
	Get size funciton. More...

#define	ast_dataitem_020_REF_get_summary ast_dataitem_reserved_expansion_field_get_summary;
	Decode function. More...

#define	ast_dataitem_020_REF_get_detail_html ast_dataitem_reserved_expansion_field_get_detail_html;
	Get detail function. More...

#define	ast_datarecord_020_get_polarcoord 0
	Get polar coordinate function. More...

#define	ast_datarecord_020_get_heading 0
	Get heading function. More...

#define	ast_datarecord_020_get_speed 0
	Get speed function. More...

Enumerations
enum	ast_mlat_track_vertical_maneuver_t { MLAT_TRACK_CLIMBING, MLAT_TRACK_DESCENDING, MLAT_TRACK_CRUISING, MLAT_TRACK_UNKNOWN }
	MLAT track vertical maneuver status. More...

enum	ast_mlat_comm_capbility_t { MLAT_COMM_NONE = 0, MLAT_COMM_A_B = 1, MLAT_COMM_A_B_U = 2, MLAT_COMM_A_B_U_D = 3, MLAT_COMM_L5 = 4, MLAT_COMM_UNDIFINED = 5 }
	MLAT communication capbility. More...

enum	ast_mlat_flight_status_t { MLAT_STAT_AIRBORNE = 0, MLAT_STAT_GROUND = 1, MLAT_STAT_AIRBORNE_ALERT = 2, MLAT_STAT_GROUND_ALERT = 3, MLAT_STAT_ALERT_SPI = 4, MLAT_STAT_SPI = 5, MLAT_STAT_UNDIFINED = 6, MLAT_STAT_UNKNOWN = 7 }
	MLAT flight status. More...

Functions
const char *	ast_dataitem_020_get_name (const ast_dataitem_type_t type)
	Get name function. More...

ast_dataitem_020_020_t	ast_dataitem_020_020_decode (const ast_dataitem_t di)
	Decode function. More...

void	ast_dataitem_020_020_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get Summary function. More...

void	ast_dataitem_020_020_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function. More...

size_t	ast_dataitem_020_055_get_size (const unsigned char *buffer, const size_t bufsize)

size_t	ast_dataitem_020_100_get_size (const unsigned char *buffer, const size_t bufsize)

ast_dataitem_020_170_t	ast_dataitem_020_170_decode (const ast_dataitem_t di)
	Decode function. More...

void	ast_dataitem_020_170_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function. More...

void	ast_dataitem_020_170_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function. More...

ast_dataitem_020_230_t	ast_dataitem_020_230_decode (const ast_dataitem_t di)
	Decode function. More...

void	ast_dataitem_020_230_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary funciton. More...

void	ast_dataitem_020_230_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function. More...

ast_dataitem_020_400_t	ast_dataitem_020_400_decode (const ast_dataitem_t di)
	Decode function. More...

void	ast_dataitem_020_400_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function. More...

void	ast_dataitem_020_400_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function. More...

size_t	ast_dataitem_020_500_get_size (const unsigned char *buffer, const size_t bufsize)
	Get size funciton. More...

ast_dataitem_020_500_t	ast_dataitem_020_500_decode (const ast_dataitem_t di)
	Decode function. More...

void	ast_dataitem_020_500_get_summary (char *summary, const size_t summary_size, const ast_dataitem_t di)
	Get summary function. More...

void	ast_dataitem_020_500_get_detail_html (char *detail, const size_t detail_size, const ast_dataitem_t di)
	Get detail function. More...

ast_sacsic_t	ast_datarecord_020_get_sacsic (const ast_datarecord_t dr)
	Get SAC/SIC function. More...

ast_timeofday_t	ast_datarecord_020_get_timeofday (const ast_datarecord_t dr)
	Get time of day function. More...

ast_msgtype_t	ast_datarecord_020_get_msgtype (const ast_datarecord_t dr)
	Get message type function. More...

ast_tracknum_t	ast_datarecord_020_get_tracknum (const ast_datarecord_t dr)
	Get track number function. More...

ast_squawk_t	ast_datarecord_020_get_squawk (const ast_datarecord_t dr)
	Get Mode-3/A code function. More...

ast_callsign_t	ast_datarecord_020_get_callsign (const ast_datarecord_t dr)
	Get callsign function. More...

ast_icaoaddr_t	ast_datarecord_020_get_icaoaddr (const ast_datarecord_t dr)
	Get ICAO 24-bit address function. More...

ast_coordinate_t	ast_datarecord_020_get_coordinate (const ast_datarecord_t dr)
	Get coordinate function. More...

ast_altitude_t	ast_datarecord_020_get_flightlevel (const ast_datarecord_t dr)
	Get flight level function. More...

ast_datarecord_020_t	ast_datarecord_020_disassemble (const ast_datarecord_t dr)
	Disassemble function. More...

Detailed Description

ASTERIX CAT020 - MLT Messages.

This file includes implementation of ASTERIX CAT020.

Note: This implementation is based on ASTERIX CAT020 version 1.8

This implementation is backward compatible with the following versions:

CAT020 version 1.7
CAT020 version 1.8

Macro Definition Documentation

◆ ast_dataitem_020_030_get_size

#define ast_dataitem_020_030_get_size ast_dataitem_get_size_var_2_byte

◆ ast_dataitem_020_210_get_size

#define ast_dataitem_020_210_get_size ast_dataitem_get_size_fixed_2_byte

Data Item I020/210 - Calculated Aceleration.

◆ ast_dataitem_020_260_get_size

#define ast_dataitem_020_260_get_size ast_dataitem_get_size_fixed_7_byte

Data Item I020/260 - ACAS Resolution Advisory Report.

◆ ast_dataitem_020_300_get_size

#define ast_dataitem_020_300_get_size ast_dataitem_get_size_fixed_1_byte

Data Item I020/300 - Vehicle Fleet Identification.

◆ ast_dataitem_020_310_get_size

#define ast_dataitem_020_310_get_size ast_dataitem_get_size_fixed_1_byte

Data Item I020/310 - Pre-programmed Message.

◆ ast_datarecord_020_get_heading

#define ast_datarecord_020_get_heading 0

Get heading function.

◆ ast_datarecord_020_get_polarcoord

#define ast_datarecord_020_get_polarcoord 0

Get polar coordinate function.

◆ ast_datarecord_020_get_speed

#define ast_datarecord_020_get_speed 0

Get speed function.

Function Documentation

◆ ast_dataitem_020_055_get_size()

size_t ast_dataitem_020_055_get_size	(	const unsigned char *	buffer,
		const size_t	bufsize
	)

◆ ast_dataitem_020_get_name()

const char* ast_dataitem_020_get_name ( const ast_dataitem_type_t type )

Get name function.

◆ ast_datarecord_020_get_callsign()

ast_callsign_t ast_datarecord_020_get_callsign ( const ast_datarecord_t dr )

Get callsign function.

◆ ast_datarecord_020_get_coordinate()

ast_coordinate_t ast_datarecord_020_get_coordinate ( const ast_datarecord_t dr )

Get coordinate function.

◆ ast_datarecord_020_get_flightlevel()

ast_altitude_t ast_datarecord_020_get_flightlevel ( const ast_datarecord_t dr )

Get flight level function.

◆ ast_datarecord_020_get_icaoaddr()

ast_icaoaddr_t ast_datarecord_020_get_icaoaddr ( const ast_datarecord_t dr )

Get ICAO 24-bit address function.

◆ ast_datarecord_020_get_msgtype()

ast_msgtype_t ast_datarecord_020_get_msgtype ( const ast_datarecord_t dr )

Get message type function.

◆ ast_datarecord_020_get_sacsic()

ast_sacsic_t ast_datarecord_020_get_sacsic ( const ast_datarecord_t dr )

Get SAC/SIC function.

◆ ast_datarecord_020_get_squawk()

ast_squawk_t ast_datarecord_020_get_squawk ( const ast_datarecord_t dr )

Get Mode-3/A code function.

◆ ast_datarecord_020_get_timeofday()

ast_timeofday_t ast_datarecord_020_get_timeofday ( const ast_datarecord_t dr )

Get time of day function.

◆ ast_datarecord_020_get_tracknum()

ast_tracknum_t ast_datarecord_020_get_tracknum ( const ast_datarecord_t dr )

Get track number function.

Typedefs
typedef ast_dataitem_data_source_identifier_t	ast_dataitem_020_010_t

typedef ast_dataitem_position_wgs84_t	ast_dataitem_020_041_t

typedef ast_dataitem_position_cartesian_t	ast_dataitem_020_042_t

typedef ast_dataitem_mode_3a_code_t	ast_dataitem_020_070_t

typedef ast_dataitem_mode_c_code_t	ast_dataitem_020_090_t

typedef ast_dataitem_height_t	ast_dataitem_020_105_t

typedef ast_dataitem_height_t	ast_dataitem_020_110_t

typedef ast_dataitem_time_of_day_t	ast_dataitem_020_140_t

typedef ast_dataitem_track_number_t	ast_dataitem_020_161_t

typedef ast_dataitem_velocity_cartesian_t	ast_dataitem_020_202_t

typedef ast_dataitem_target_address_t	ast_dataitem_020_220_t

typedef ast_dataitem_target_id_t	ast_dataitem_020_245_t

typedef ast_dataitem_modes_mb_t	ast_dataitem_020_250_t

Data Structures

Macros

Typedefs

Enumerations

Functions
